5.5 TONNE 4-POST CAR HOIST ELECTRIC LOCK RELEASE

$7,099.00
/
Tax included. Shipping calculated at checkout.
  • 2-Year Warranty on all Electrical and Hydraulic Components.
  • Australian Based Phone & Email Support. 8am-5pm.
  • Titan 30 days Money Back Guarantee. Zero return shipping cost + a FULL refund.
2 Year Warranty
Direct Local AUS Support
30-Day Returns
Wheel Alignment Capabilities

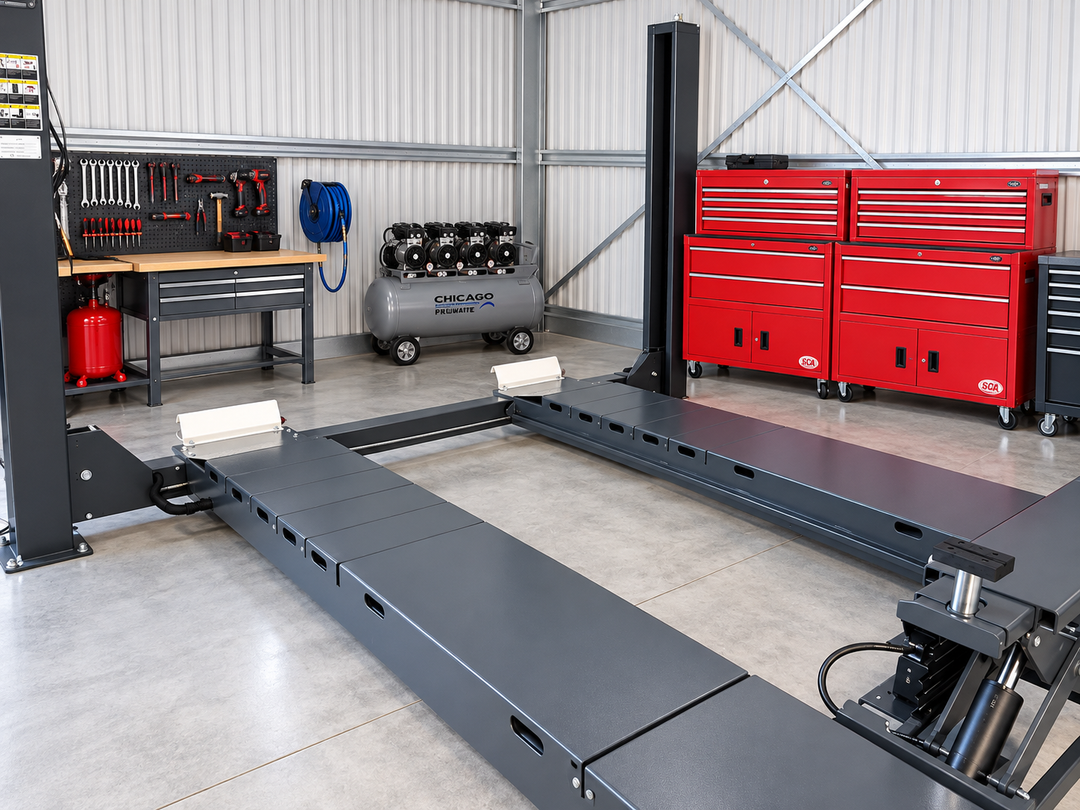

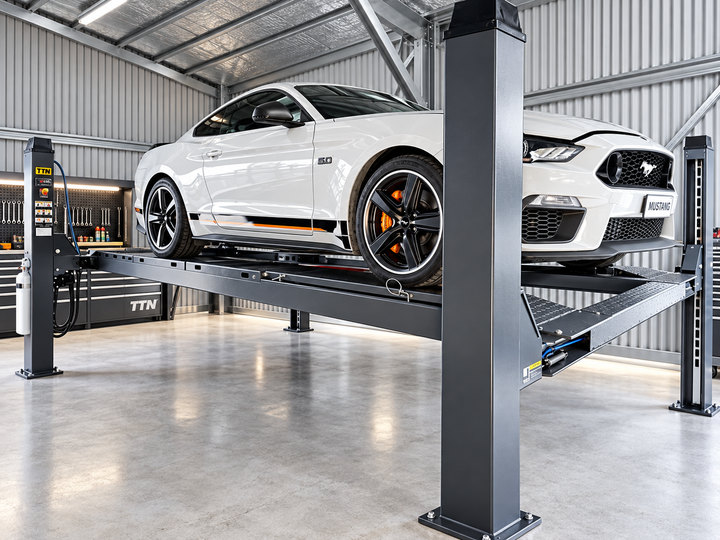

TTN INDUSTRIAL 5.5 TONNE 4-POST CAR HOIST ELECTRIC LOCK RELEASE

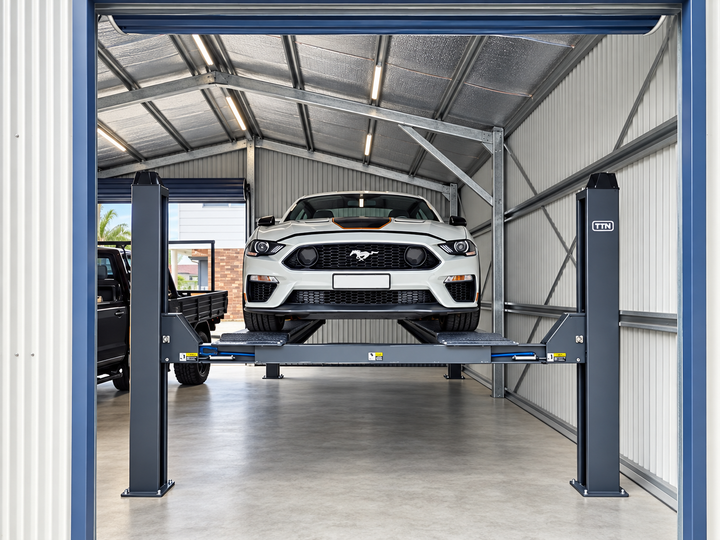

A 5.5 tonne drive-on 4-post hoist for servicing, inspections and vehicle storage.

The TTN Industrial 5.5T 4-Post Hoist gives you 5,500 kg of lifting capacity, extra-long 5,500 mm runways and electric lock release. Drive on, lift up and work with the vehicle sitting on its wheels. It's ideal for servicing, inspections, detailing and storing a second car underneath.

5,500 kg Lifting Capacity

Rated to lift cars, 4WDs, American pickups, dual-cab utes, vans, light commercial vehicles and classic or collectable cars.

Strong Steel Runways

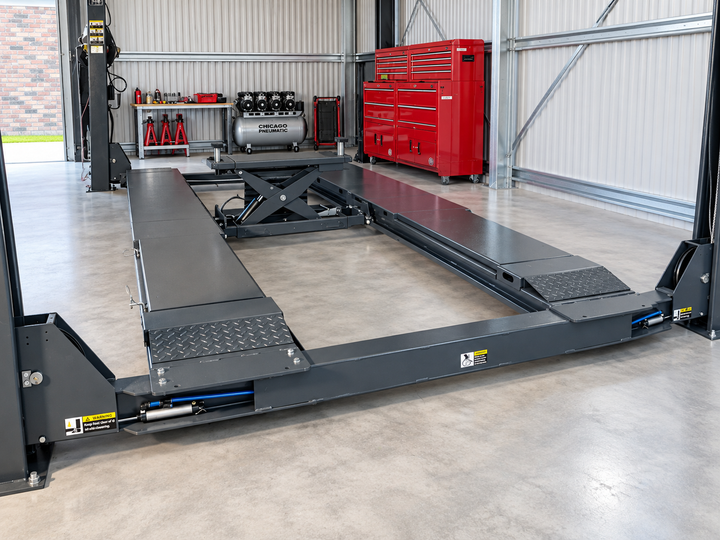

Durable 550 mm wide runways, 5,500 mm long, with built-in slots for accessories. The gap between the runways adjusts from 800 to 1,100 mm to suit different track widths.

Heavy-Duty Ramps

Detachable steel approach ramps make driving on easy.

Safe and Reliable

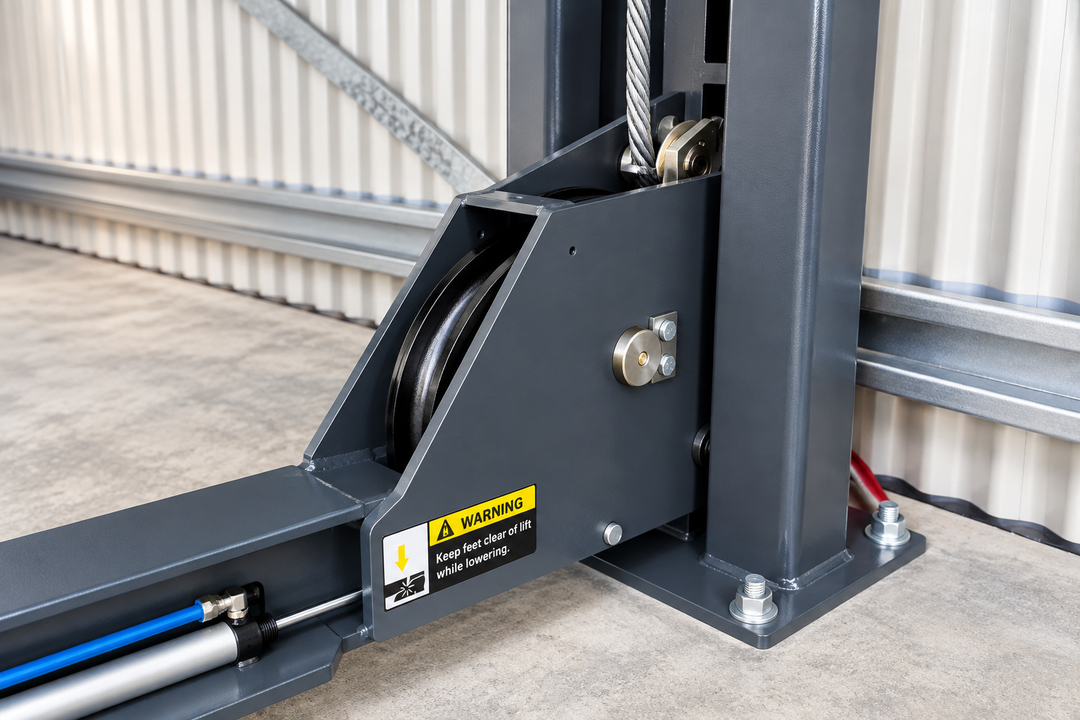

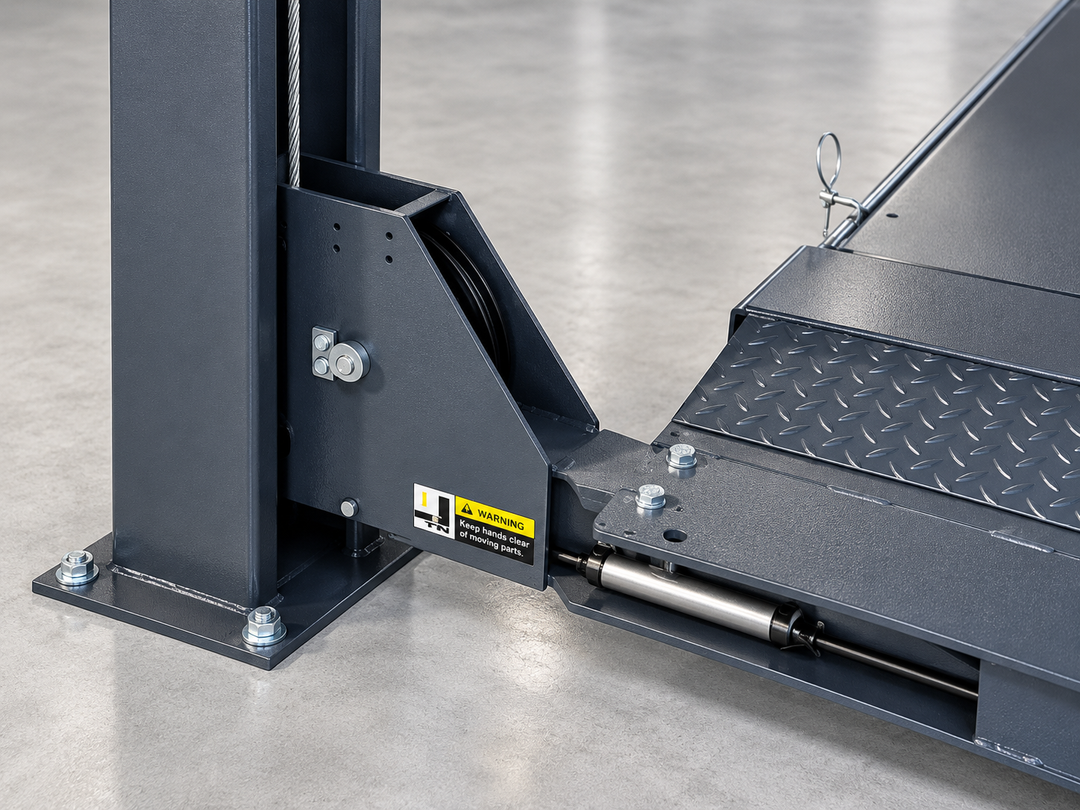

Dual hydraulic cylinders, mechanical safety locks and anti-surge valves keep the vehicle secure while it's lifted.

Choose Your Version

Available in a Wheel Alignment version or a Non-Wheel Alignment version. Select the one you need above.

Optional Air Jack

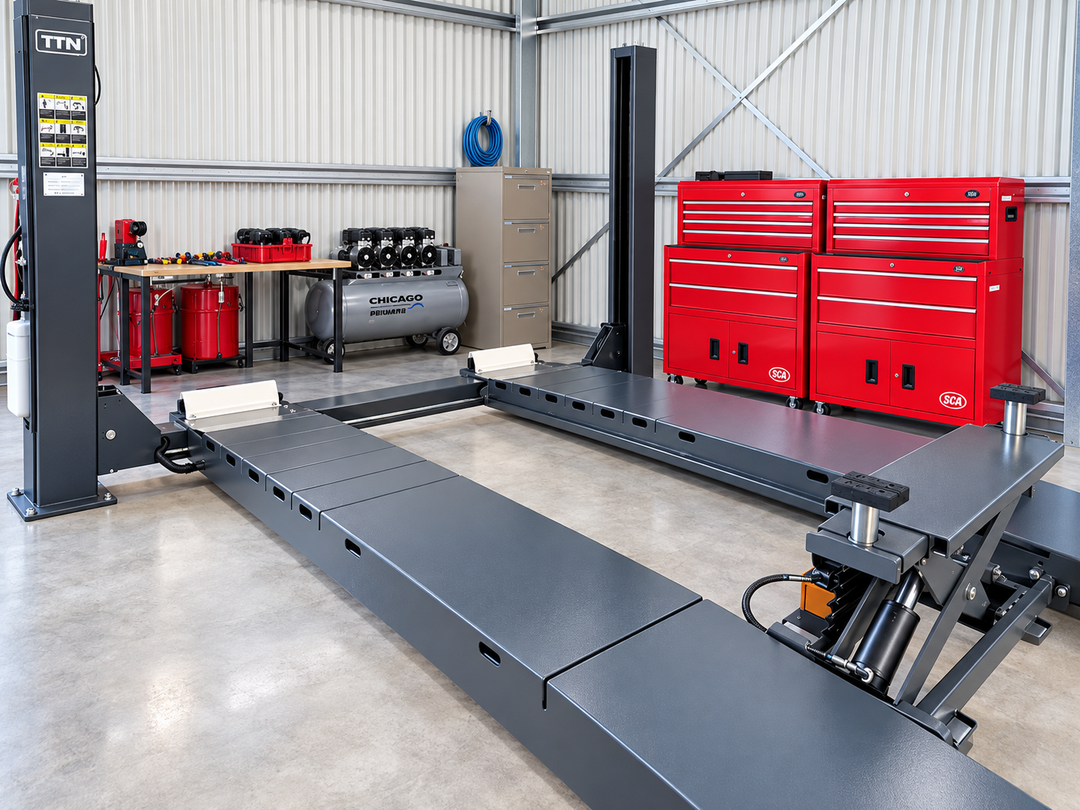

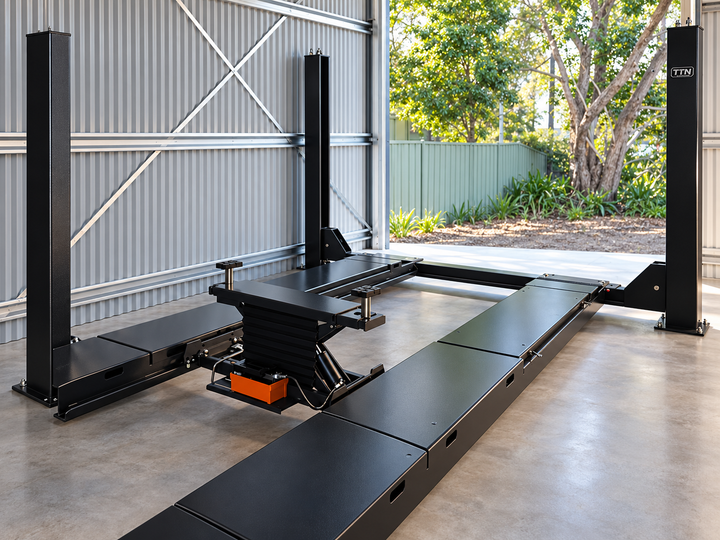

Add the Air Jack Upgrade (sold separately). It sits between the runways and lifts the vehicle by the chassis so you can take the wheels off for brake, suspension and tyre work.

Specifications

  • Lifting capacity: 5,500 kg
  • Design: 4-post drive-on

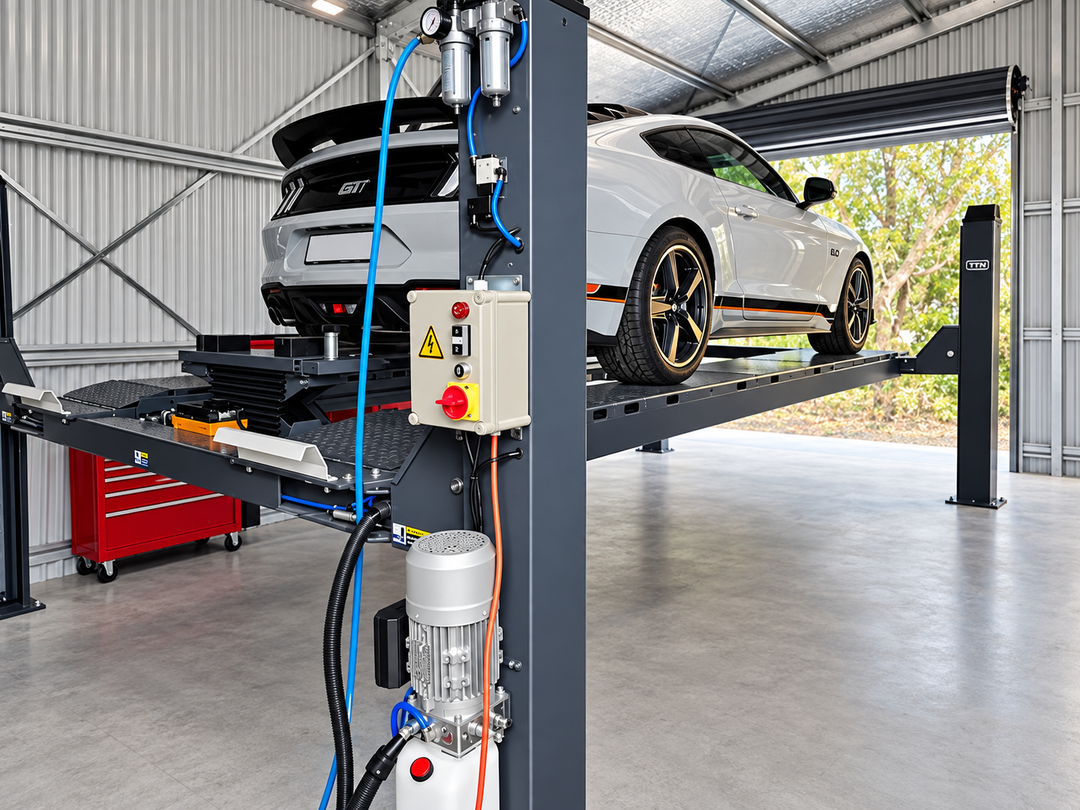

  • Lock release: Electric
  • Lifting height: 218 mm – 1,850 mm
  • Overall height: 2,118 mm
  • Overall width: 3,565 mm
  • Drive-through width: 3,105 mm
  • Runway width: 550 mm each
  • Runway length: 5,500 mm
  • Overall length including ramps: 6,450 mm
  • Width between runways: 800 – 1,100 mm
  • Gross weight: 1,678 kg
  • Motor: 3.0 kW
  • Power: 215–240 V or 380–415 V, 50/60 Hz
  • Lifting time: 50 seconds or less
  • Lowering time: 20 seconds or more
  • Noise level: 75 dB or less

Before you order: Check that you have at least 6,450 mm of floor length, 3,565 mm of width, and enough ceiling height for the hoist plus the raised vehicle. The hoist must be installed on a suitable concrete slab by a qualified installer.

Delivery & Installation

  • A forklift or suitable unloading equipment is needed at the delivery address. We will contact you before dispatch to confirm access.
  • Need an installer? We can connect you with qualified hoist installers across Australia.

Shipping times for the products will be approximately 3-4 business days depending on your location.
