Heavy-Duty Lifting for Larger Vehicles and Vehicle Storage

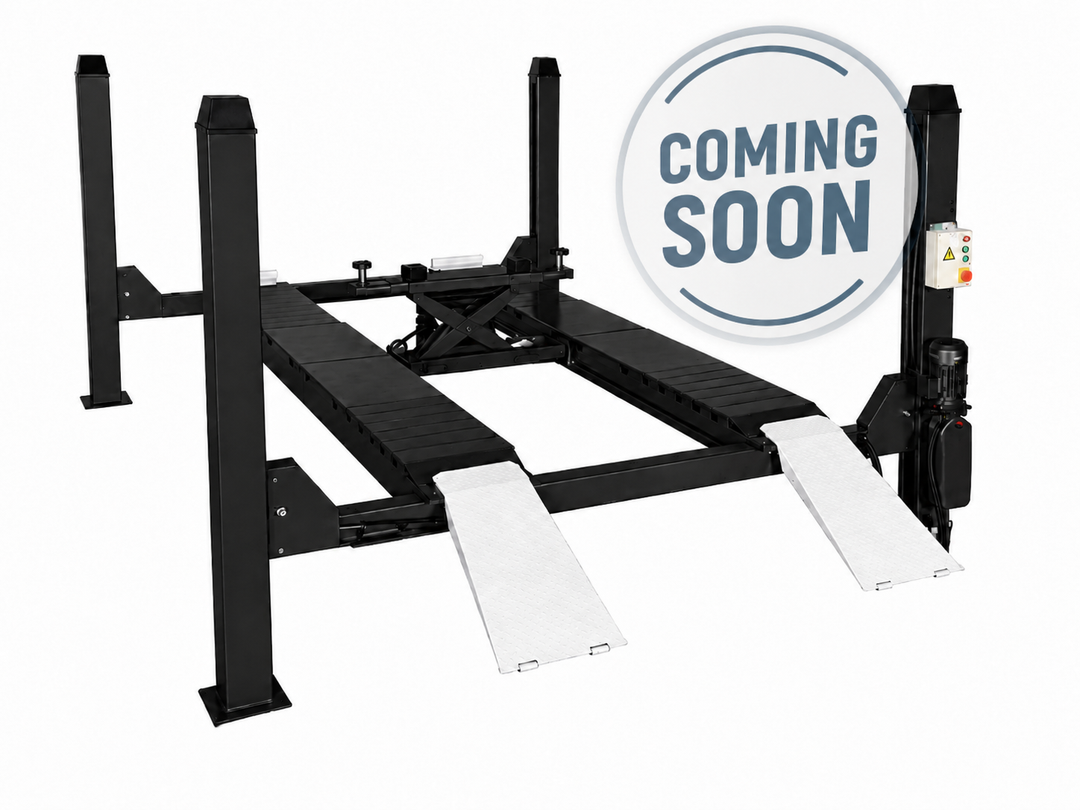

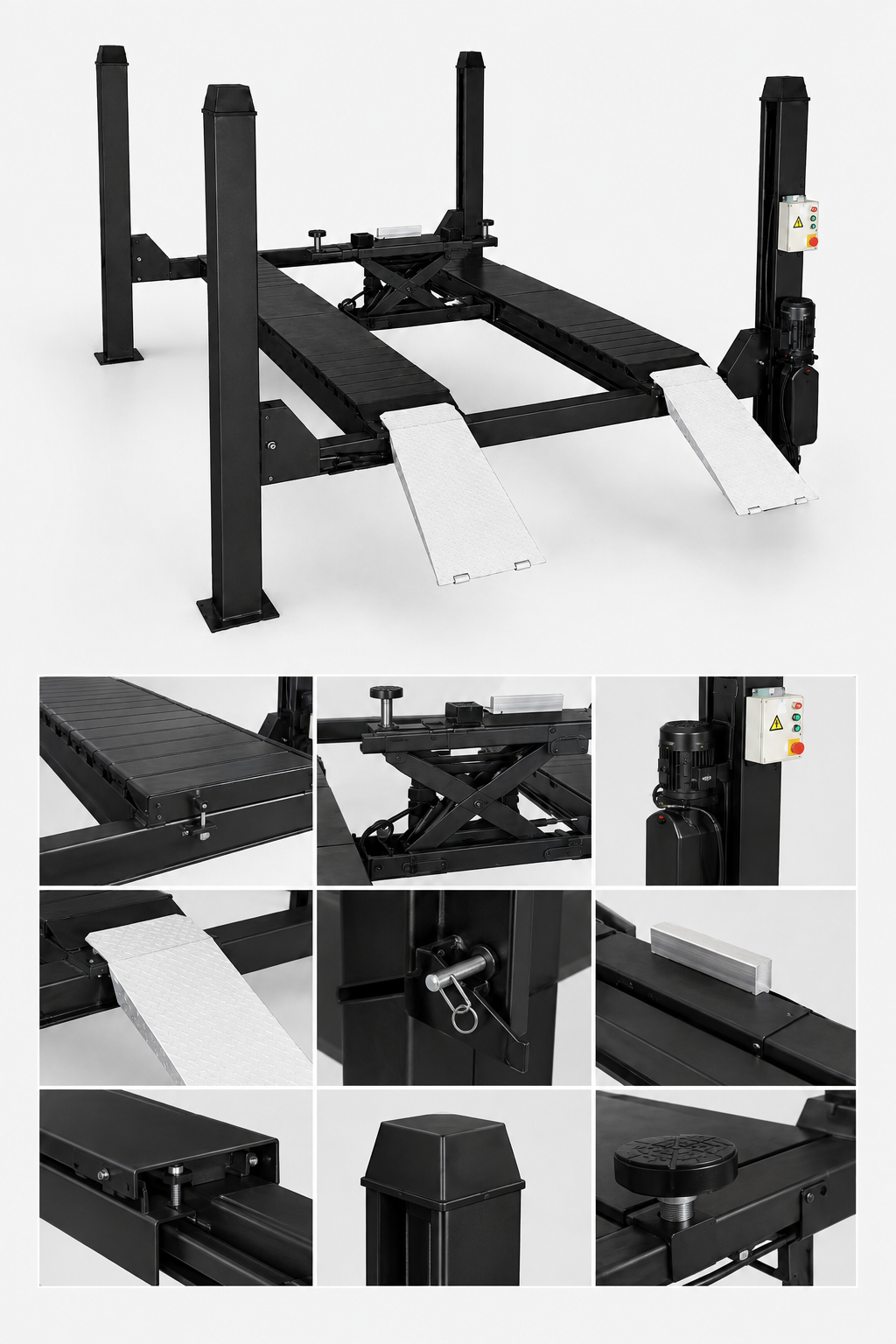

TTN Industrial 5.5T Four-Post Hoist

Built for commercial workshops, fleet maintenance, vehicle inspections and serious home garages.

From passenger cars and performance vehicles to large 4WDs, American pickup trucks, vans and light commercial vehicles, the TTN Industrial 5.5T Four-Post Hoist provides a stable and versatile heavy-duty lifting solution.

With a 5,500 kg lifting capacity, extra-long 5,500 mm runways and a wide 3,105 mm drive-through area, this hoist is designed to accommodate a broad range of larger and longer vehicles.

Whether you need comfortable under-vehicle access, a dependable servicing platform or additional vehicle storage space, the TTN Industrial 5.5T Four-Post Hoist is built to handle bigger jobs.

This isn’t a lightweight parking lift.

This is 5.5 tonnes of workshop-ready lifting capacity.

✅ Massive 5.5 Tonne Lifting Capacity

With a rated lifting capacity of 5,500 kg, this hoist is built to handle larger and heavier vehicles, including:

Large and modified 4WDs
American pickup trucks
Dual-cab utes
Vans and fleet vehicles
Light commercial vehicles
Passenger and performance cars
Classic and collectable vehicles

One versatile hoist for servicing, inspections, maintenance and vehicle storage.

Whether you are maintaining a daily driver or lifting a heavy touring setup, the TTN Industrial 5.5T Four-Post Hoist gives you the capacity required to take on more vehicles and bigger jobs.

✅ Up to 1,850 mm Maximum Lift Height

Stop crawling underneath vehicles.

With a maximum runway height of 1,850 mm, the vehicle can be raised to provide clear and comfortable access underneath.

Perfect for:

General servicing
Oil changes
Exhaust work
Driveline inspections
Underbody repairs
Vehicle inspections
Fleet maintenance
Cleaning and detailing
Vehicle storage

Lifting range: 218 mm to 1,850 mm

Easy drive-on access for suitable vehicles.

High enough to provide excellent under-vehicle working clearance.

✅ Stable Four-Post Design

The four-post layout provides a large and stable lifting platform, with the vehicle supported by its wheels.

Simply drive the vehicle onto the runways, position it correctly and raise the hoist.

The vehicle remains supported on all four wheels, making the hoist ideal for servicing, inspections, detailing, maintenance and storage.

A four-post hoist is particularly well suited to work where the wheels do not need to be removed.

✅ Extra-Long 5,500 mm Runways

The TTN Industrial 5.5T Hoist features extra-long 5,500 mm runways, providing generous support for vehicles with longer wheelbases.

The extended runway length makes the hoist suitable for everything from passenger vehicles through to large 4WDs, American pickup trucks, long-wheelbase vans and light commercial vehicles.

Including the approach ramps, the hoist has an overall length of approximately 6,450 mm.

Drive onto the runways, position the vehicle correctly and lift it securely.

✅ Adjustable Runway Spacing

Different vehicles have different track widths.

The distance between the runways can be adjusted from:

800 mm to 1,100 mm

This allows the runway position to be configured to suit a broader range of vehicles.

The adjustable design makes the hoist more versatile for workshops that regularly service vehicles of different sizes and widths.

✅ Wide Drive-Through Area

The TTN Industrial 5.5T Four-Post Hoist provides generous clearance for larger vehicles.

Overall width: 3,565 mm
Drive-through width: 3,105 mm
Runway width: 550 mm each

The wide design provides excellent access for passenger vehicles, large 4WDs, dual-cab utes, vans and light commercial vehicles.

Before ordering, confirm that your workshop has sufficient floor space, ceiling height and vehicle access.

✅ Heavy-Duty Commercial Construction

With a gross weight of approximately 1,678 kg, this is a substantial piece of workshop equipment.

More than 1.6 tonnes of heavy-duty construction provides the strength and stability required when lifting vehicles weighing up to 5,500 kg.

Featuring:

Heavy-duty steel posts
Extra-long reinforced runways
Wide vehicle access
Workshop-grade hydraulic components
Stable four-post construction
Heavy-duty lifting structure
Mechanical safety locking system

Built for workshops that need dependable equipment capable of handling regular commercial use.

✅ Powerful 3.0 kW Motor

The powerful 3.0 kW motor delivers smooth and dependable lifting performance, even when working with heavier vehicles.

Available power configurations:

215–240V
380–415V
50/60 Hz

Choose the electrical configuration that best suits your workshop.

Lifting time: 50 seconds or less

Smooth operation.

Reliable lifting.

Less time waiting and more time getting the job done.

✅ Ideal for Vehicle Storage

Need to create more space in your garage or workshop?

A four-post hoist can be used to raise one vehicle, allowing another suitable vehicle to be positioned underneath where the installation, vehicle dimensions and available clearances permit.

This makes it a practical option for:

Classic car storage
Performance vehicle storage
Workshop space management
Home garage storage
Car collections
Long-term vehicle parking

Always confirm vehicle heights, ceiling clearance and the hoist’s approved operating requirements before using it for vehicle storage.

Who Uses the TTN Industrial 5.5T Four-Post Hoist?

Mechanics and Commercial Workshops

Create a stable platform for servicing, inspections, underbody work and general maintenance.

The 5,500 kg lifting capacity makes it suitable for passenger cars, large 4WDs, American pickup trucks, vans, fleet vehicles and light commercial vehicles.

Vehicle Inspection Workshops

The extra-long runways and excellent under-vehicle access make this hoist ideal for inspections and maintenance checks.

Raise the entire vehicle while it remains securely supported by its wheels.

4WD and Accessory Workshops

Perfect for underbody inspections, exhaust work, driveline servicing, accessory installations and general maintenance.

The 5.5T capacity provides additional support for larger, modified and fully equipped touring vehicles.

American Truck Specialists

The extra-long runways, wide drive-through clearance and 5.5T lifting capacity make this hoist well suited to larger American pickup trucks.

Fleet and Commercial Vehicle Workshops

Service work utes, vans, fleet vehicles and light commercial vehicles using one versatile lifting platform.

The wide drive-through area and 5,500 mm runways accommodate a broad range of longer and heavier vehicles.

Car Collectors

Create additional vehicle storage space while keeping collectable, classic or performance vehicles raised securely off the workshop floor.

Ideal for garages where floor space is limited.

Serious Home Workshops

Building the ultimate home garage?

This is for the home mechanic who wants heavy-duty lifting capacity, a stable drive-on platform, generous under-vehicle access and the ability to service or store a wide variety of vehicles.

Product Specifications

Hoist type: Heavy-duty four-post vehicle hoist
Lifting capacity: 5,500 kg
Minimum lifting height: 218 mm
Maximum lifting height: 1,850 mm
Overall height: 2,118 mm
Overall width: 3,565 mm
Drive-through width: 3,105 mm
Runway width: 550 mm each
Runway length: 5,500 mm
Overall length including ramps: 6,450 mm
Adjustable distance between runways: 800 mm to 1,100 mm
Gross weight: Approximately 1,678 kg
Motor power: 3.0 kW
Voltage options: 215–240V or 380–415V
Frequency: 50/60 Hz
Lifting time: 50 seconds or less
Lowering time: 20 seconds or more
Noise level: 75 dB or less

Before Installation

Before purchasing, confirm that your workshop has:

At least 2,118 mm of clearance for the hoist structure
Additional ceiling clearance for the raised vehicle
Adequate space around the 3,565 mm-wide hoist
At least 6,450 mm of floor length for the hoist and ramps
A suitable reinforced concrete slab
Access to the required electrical supply
Sufficient delivery and unloading access
A qualified hoist installer

The required ceiling height will depend on the height of the vehicle being lifted and how the hoist will be used.

Do not install the hoist on cracked, damaged or unsuitable concrete.

Concrete and installation requirements may vary depending on the condition and construction of the slab. The installation site should be assessed by a qualified installer or engineer where required.

Installation Support

Need help arranging installation?

TTN Industrial can assist with connecting customers to qualified hoist installers across Australia.

Our team can discuss:

Your workshop dimensions
Concrete requirements
Electrical requirements
Vehicle clearance
Delivery access
Unloading requirements
Installer availability in your area

Delivery Information

Free Shipping Australia-Wide

Due to the size and approximately 1,678 kg gross weight of the hoist, suitable unloading equipment will be required at the delivery address.

A forklift or appropriate unloading facility will likely be necessary.

Our team will contact you before dispatch to confirm delivery access and unloading arrangements.

Lift Bigger. Store More. Take On More Jobs.

Massive 5.5 tonne lifting capacity.

Extra-long 5,500 mm runways.

Stable four-post construction.

Excellent under-vehicle access.

Lift securely. Work comfortably. Choose TTN Industrial.
