TTN Industrial 4.5 Tonne 2-Post Car Hoist – Dual Electric Lock Release + FREE 3T Jack

The all-rounder for workshops and serious home garages. 4,500 kg of lifting capacity, full clear-floor access under the vehicle, and one button that releases the locks on both posts at once.

• Lifts 4.5 tonnes – sedans, hatches, SUVs, 4WDs, utes and light commercial vans
• Dual Post Electric Lock Release – one push releases both columns together for smooth, even lowering
• Clear floor design – nothing to trip over or roll trolleys across
• Single phase or three phase – choose the version that suits your power supply
• 2-year warranty + 5-year structural warranty · CE certified

Is it right for your space?

• Ceiling height of at least 3,900 mm
• Overall width 3,420 mm, drive-through width 2,830 mm
• Concrete slab at least 200 mm thick, rated 21 MPa (3,000 PSI) or more
• 240 V single-phase or 415 V three-phase power

What it costs to get it working

• Hoist: $4,899 Black Friday price (normally $5,299) + a FREE 3T Rugged Floor Jack ($899 value)
• Freight: depot-to-depot – enter your postcode in the freight calculator to see your cost
• Installation: must be installed by a qualified hoist installer. As a rough guide, allow $1,500–$2,000. We can put you in touch with an installer.

Warranty & certification

• 2-year warranty
• 5-year structural warranty
• CE certified

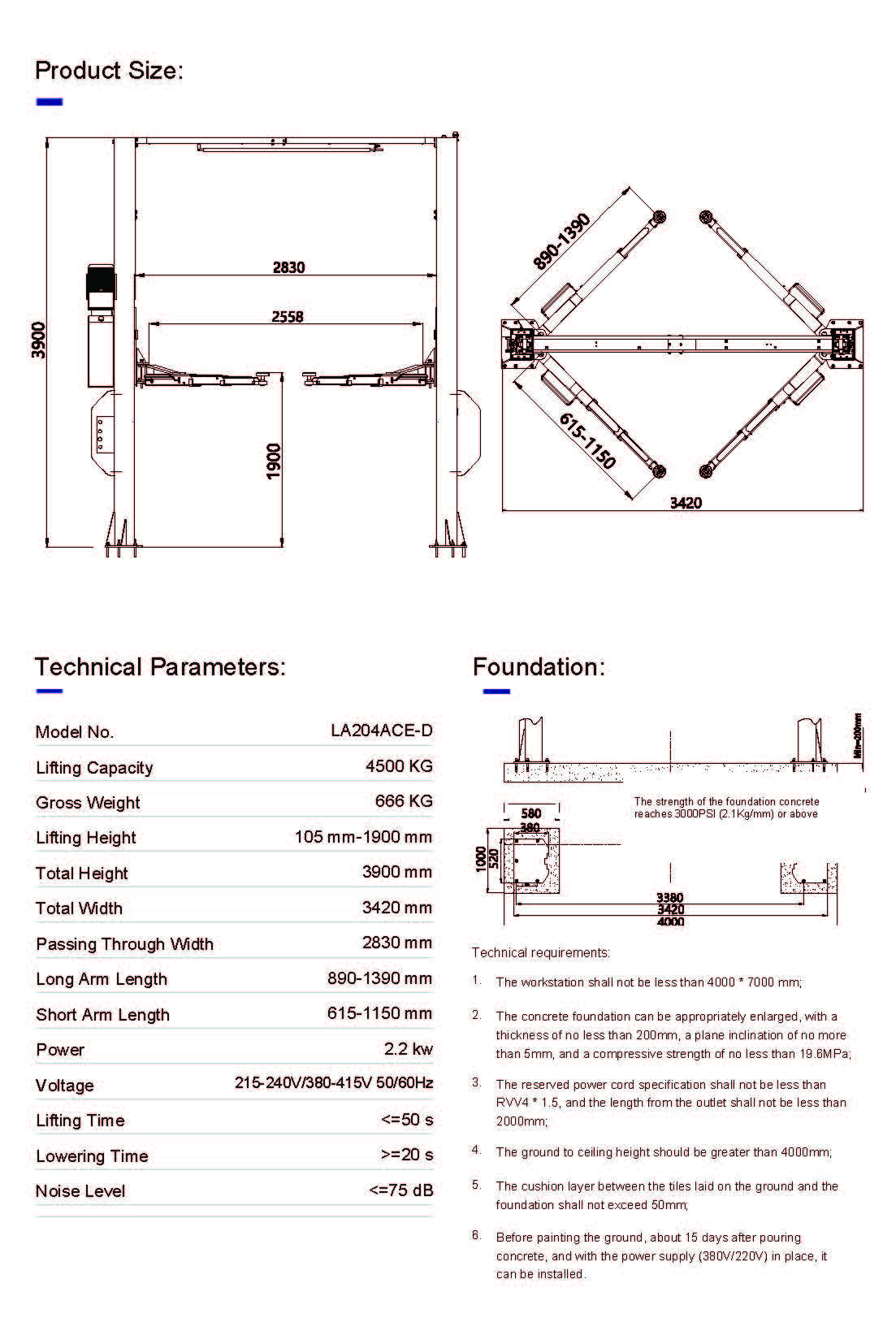

Specifications

• Lifting capacity: 4,500 kg
• Design: 2-post clear floor
• Lock release: Dual Post Electric Lock Release
• Safety locks: Automatic multi-position mechanical
• Safety: dual hydraulic cylinders, anti-surge valves
• Lifting height: 105 mm – 1,900 mm
• Overall height: 3,900 mm
• Overall width: 3,420 mm
• Drive-through width: 2,830 mm
• Long arm length: 890 – 1,390 mm (2-stage, screw pads)
• Short arm length: 615 – 1,150 mm (2-stage, screw pads)
• Gross weight: 666 kg
• Motor: 2.2 kW
• Power: 215–240 V single phase or 380–415 V three phase, 50/60 Hz
• Lifting time: 50 seconds or less
• Lowering time: 20 seconds or more
• Noise level: 75 dB or less
• Included: 4 raising blocks

FAQ

Do you deliver to my door?
Delivery is depot-to-depot. You'll need a forklift or suitable equipment to collect and unload the hoist.

Can I install it myself?
No – the hoist must be installed by a qualified hoist installer. Allow roughly $1,500–$2,000 as a guide, and ask us for an installer contact.

4.5T, 5T or 6T?
The 4.5T suits most cars, SUVs and 4WDs and fits the lowest ceiling (3,900 mm). Step up to the 5T or 6T for heavy pickups, loaded touring rigs and commercial vehicles.
